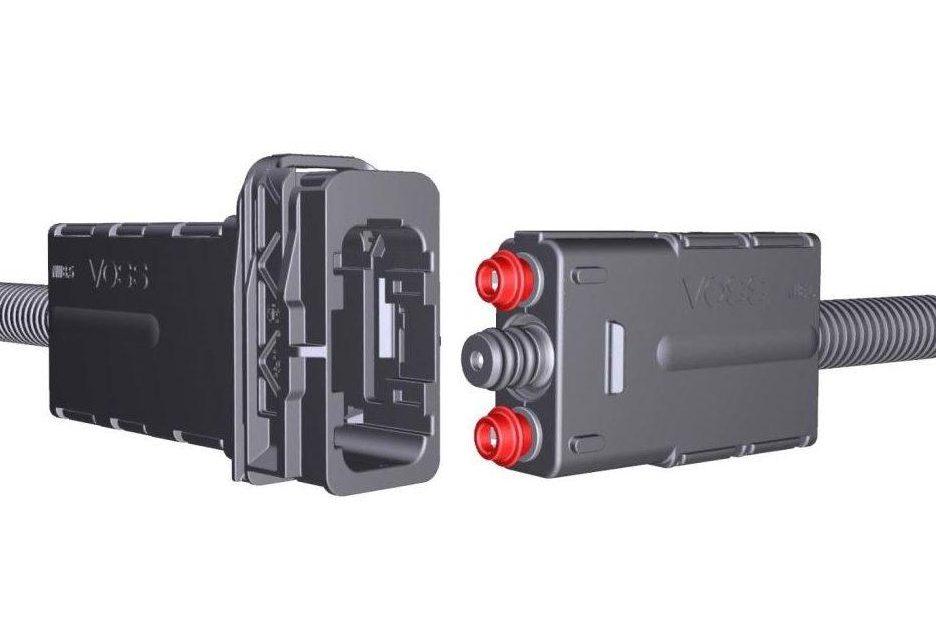

VOSS quick connect system 301 EFSP SCR

301EFSP

VOSS Quick Connect System 301EFSP is a separation point for electrically heated SCR lines. It provides for a quick and safe connection of AdBlue® lines and heating wires with one single process step.

  • Validated heating and sealing concept, well-proven thermal isolation
  • Optimized thawing performance
  • Efficient heating in the interface zone
  • Less entrapped AdBlue® and residual ice volume
  • Easy handling, small package and assembly space
  • Well-proven laser-welded connection of the fluid lines
  • Optional secondary lock for additional visual connection indicator
  • Visual connection indicator for subsequent assemblies
  • Poka Yoke design for a secure and proper connection
  • Connection of PPA tubes, tube size 4x1
  • Continuous inner diameter
  • Operating pressure max. 10 bar
  • Operating temperature range -40°C to +120°C
  • Compatible with high temperature lines
