All Quick Connectors

Quick Connectors

241

241

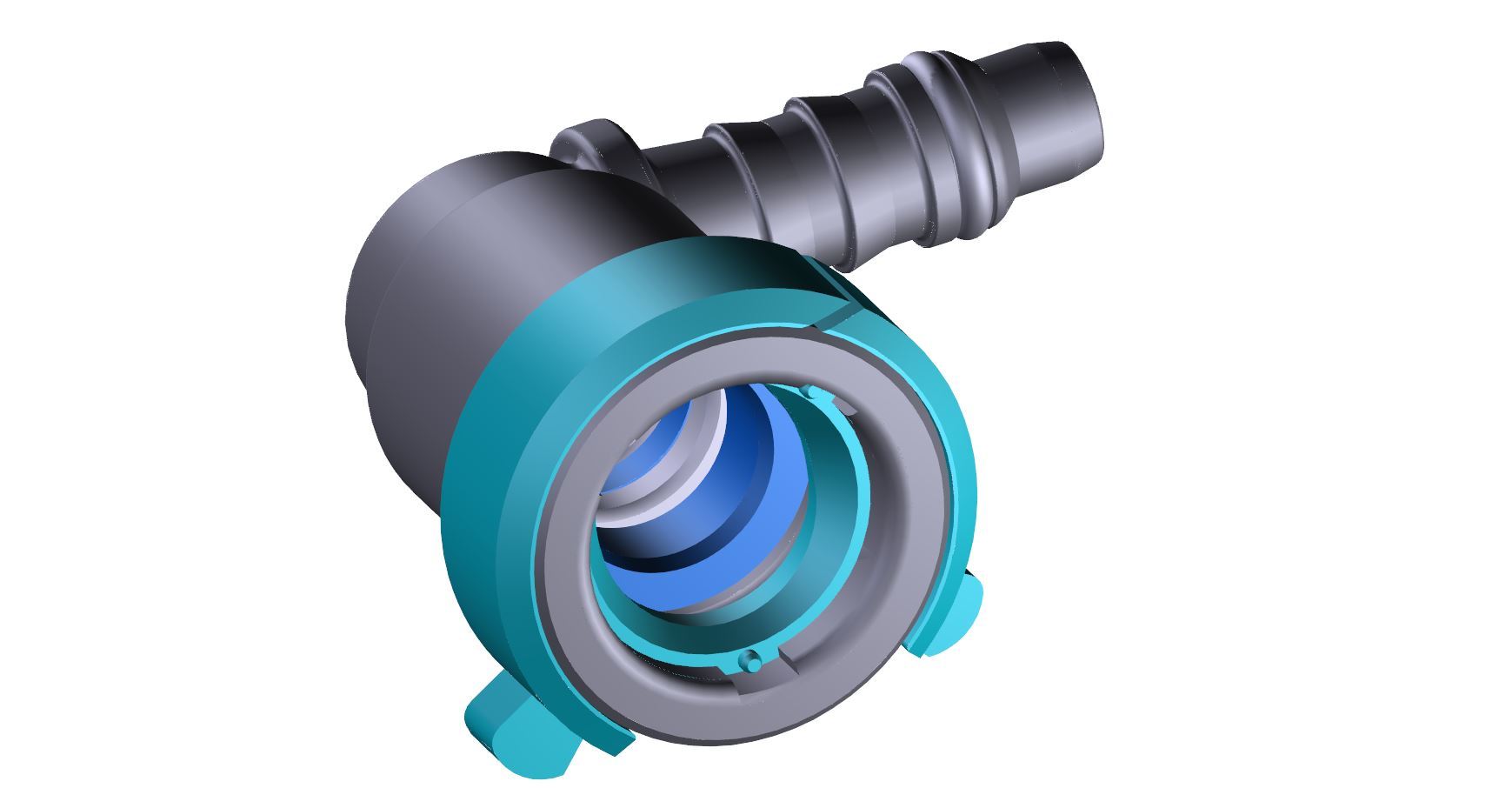

VOSS Quick Connect System 241 enables quick and safe assembly of AdBlue(R)
and coolant lines to SAE J2044 connection profiles.

  • Allows quick assembly of a nylon tube and any device with a formed SAE end
  • Straight and shaped fittings
  • Housing made of brass or nylon 6.6 reinforced
  • Range of use from -40°F to +212/+248°F (-40°C to +100/+120°C) dependent on sealing material
  • High temperature configuration up to +160 °C continuously and +180 °C intermittently available, only for 4x1 nylon tubes in SCR applications
  • Permissible operating pressure 145 PSI (10/12 bar)
  • Special design for crash-safe requirements
